3 inch Screw solar bore pump 120W/210W/500W solar powered bore pump for household water supply
3 INCH DC BRUSHLESS SCREW SOLAR PUMP
Solar screw pump: small power and large head, used to provide household water, animal husbandry, and small area irrigation.
● Permanent magnet DC brushless synchronous motor
● Stainless steel outlet, oil cylinder, connection
● MPPT Controller
3 INCH SCREW SOLAR PUMP PARAMETE
| 3″ SCREW SOLAR PUMP | |||||
|---|---|---|---|---|---|
| Model | Power | Voltage | Max flow(m3/h) | Max head(m) | Outlet(inch) |
| 3DSS0.5-28-12-80 | 80 | 12 | 0.5 | 28 | 0.75″ |
| 3DSS1.2-56-24-120 | 120 | 24 | 1.2 | 56 | 0.75″ |
| 3DSS1.2-77-36-210 | 210 | 36 | 1.2 | 77 | 0.75″ |
| 3DSS1.7-109-48-500 | 500 | 48 | 1.7 | 109 | 0.75″ |
| 3DSS2.0-150-48-750 | 750 | 48 | 2.0 | 150 | 0.75″ |
| 3DSS2.0-150-72-750 | 750 | 72 | 2.0 | 150 | 0.75″ |
| 3DSS2.2-180-72-1100 | 1100 | 72 | 2.0 | 180 | 0.75″ |

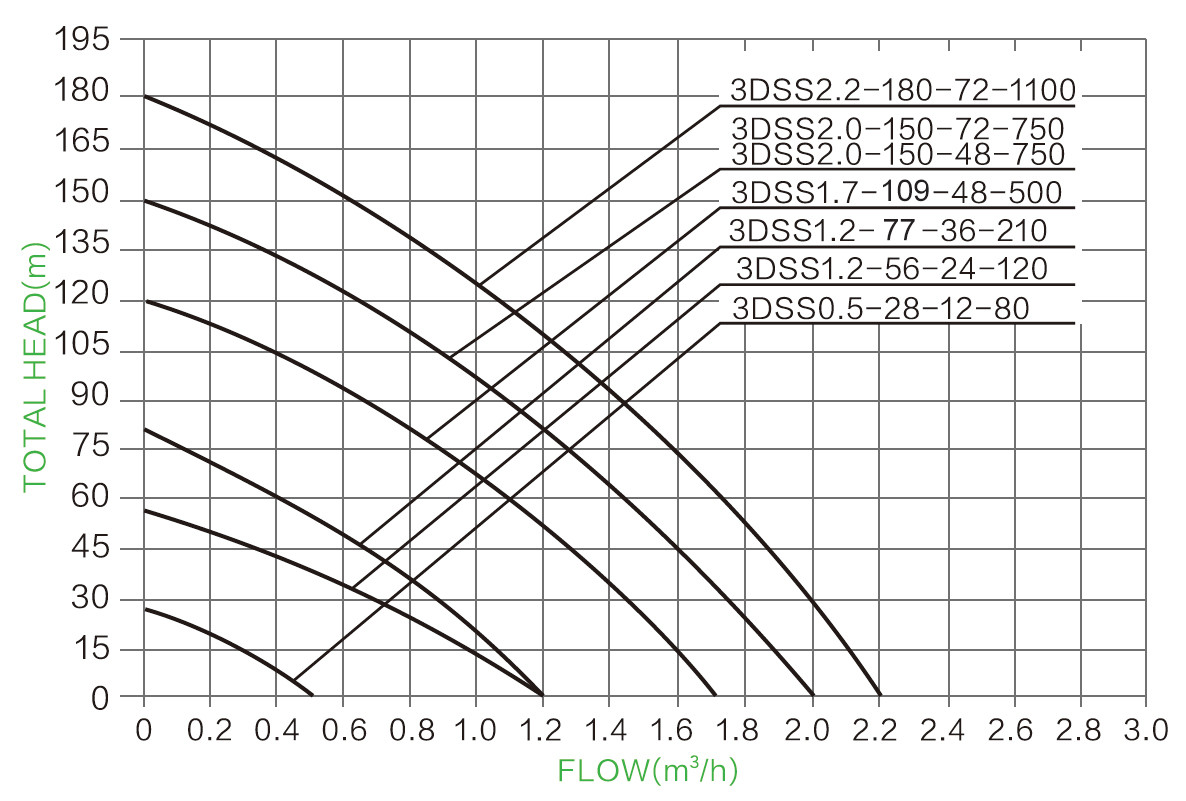

3 INCH SCREW SOLAR PUMP PARAMETER
HOW TO CHOOSE A PUMP
Confirm you technical requiremt
How deep is your well(bore hole)?
How far is the distance between tank and well?
What’s you requirement about the flow(L/H)?
Compare your requiremt with out product

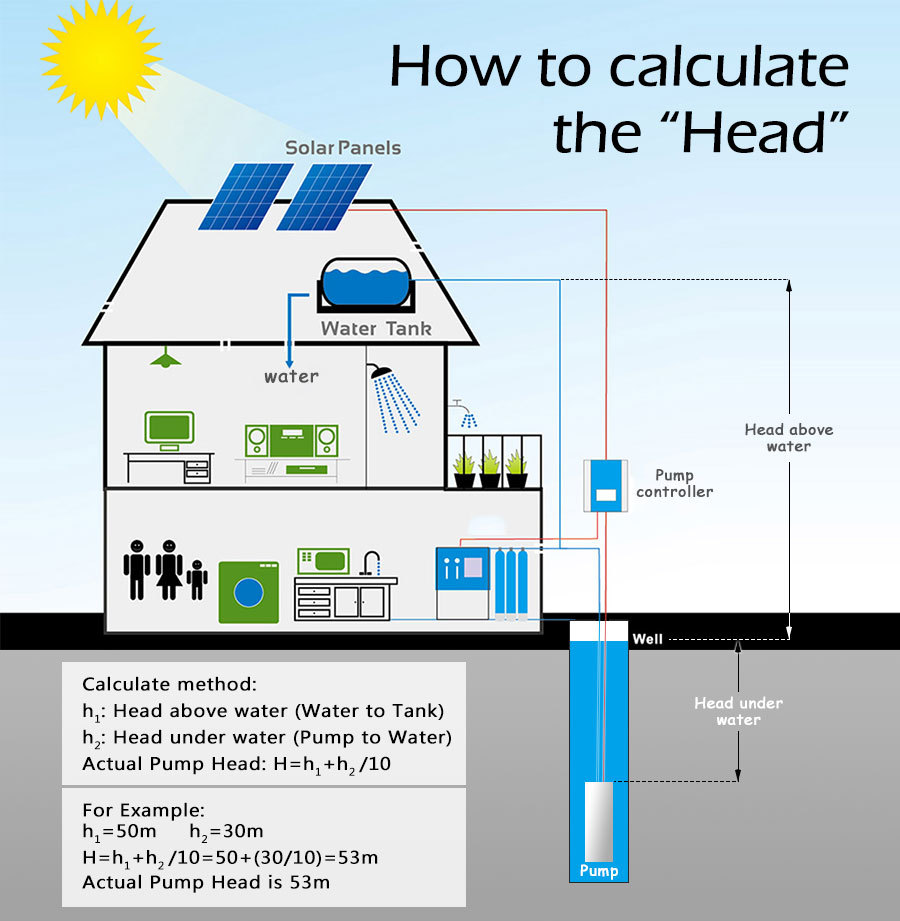

Calculate”Actual Pump Head”and find the proper pump with the right head.
Then you can choose the pump you want according todifferent folw and prices.
HOW TO CHOOSE SOLAR PANEL

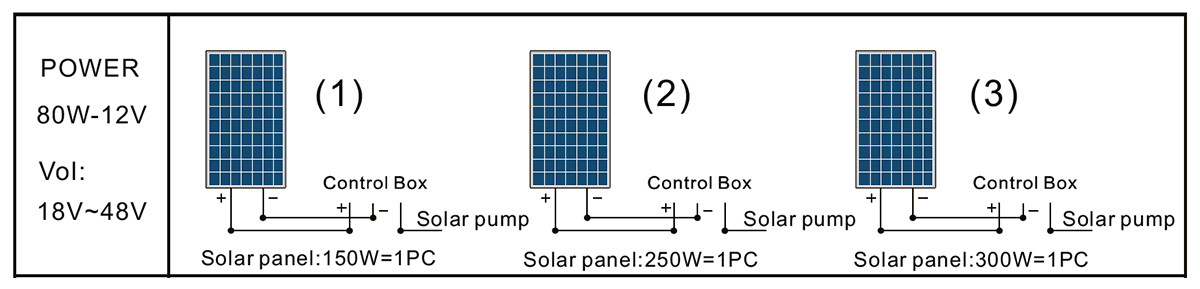

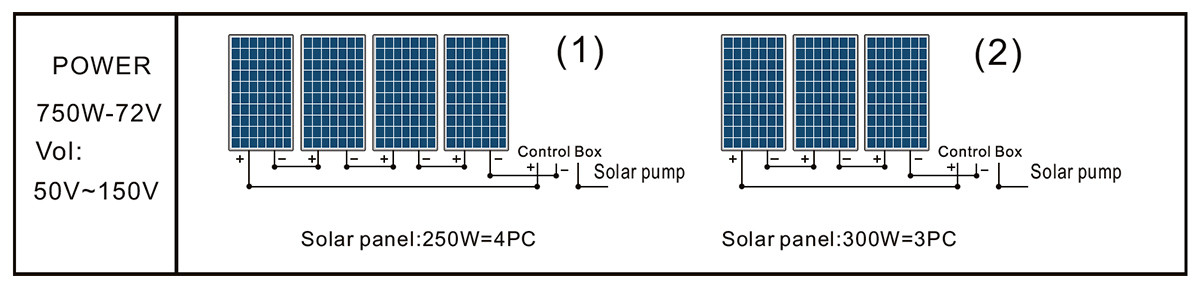

The solar PV system voltage needs to meet the voltage range in the figure below. For example: The 3DSS0.5-28-12-80 model matches the solar panel voltage between 18V～48V.
3DSS0.5-28-12-80

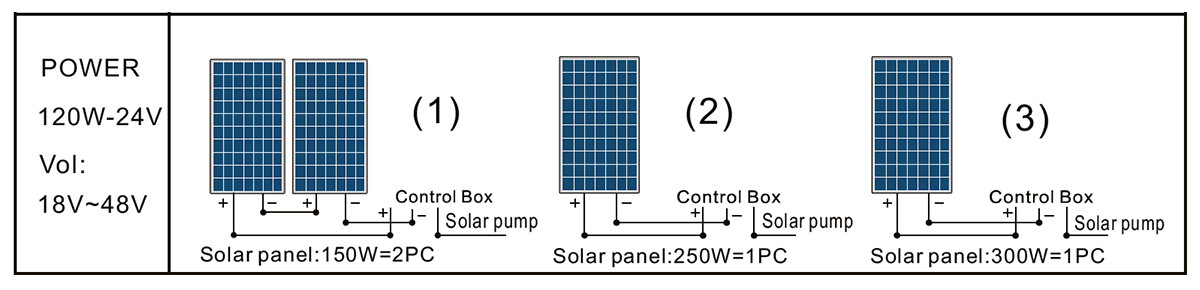

3DSS1.2-56-24-120

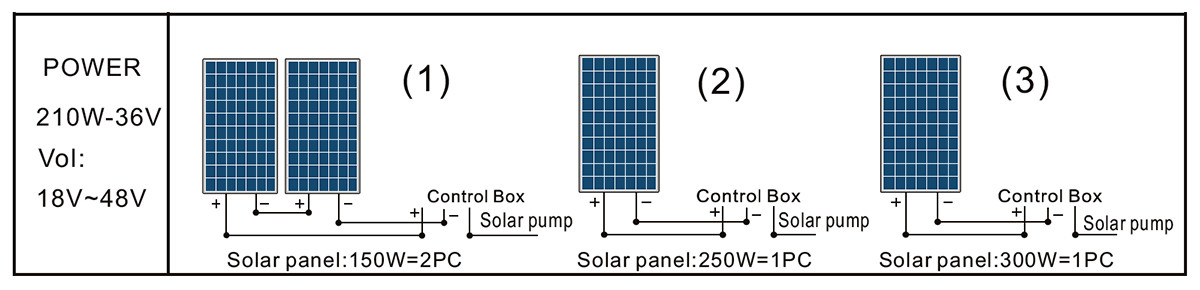

3DSS1.2-77-36-210

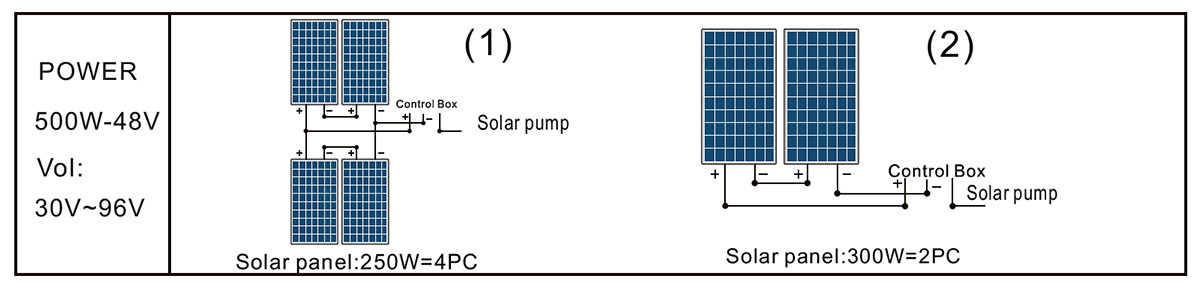

3DSS1.7-109-48-500

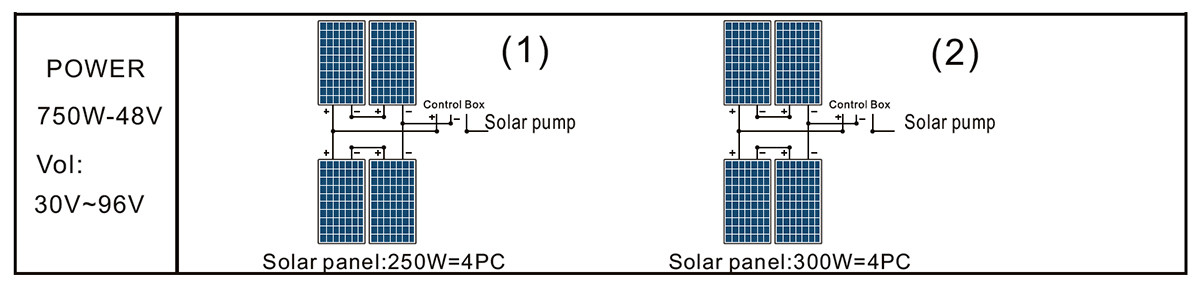

3DSS2.0-150-48-750
3DSS2.0-150-72-750

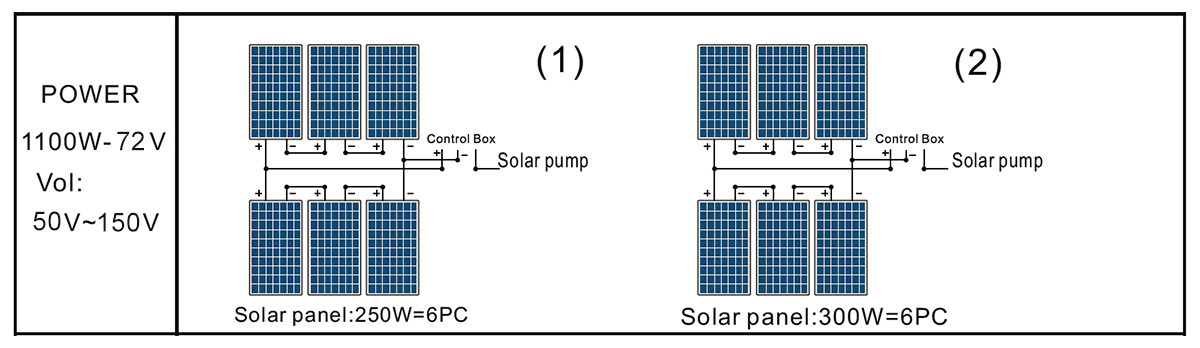

3DSS2.2-180-72-1100
