High Speed Deep Well Pump – Solar Farm And Ranch

High Speed Deep Well Pump

Click here to View the High Speed Deep Well Pump Brochure

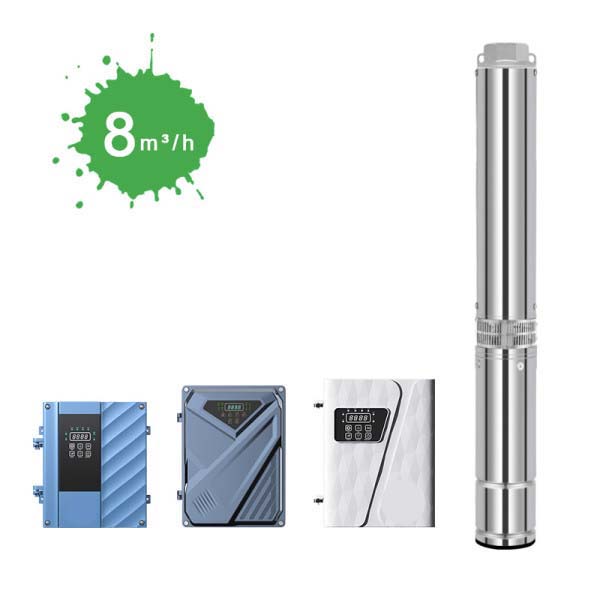

6000 rpm high speed deep well pump | Sand-resistant structure design | household water supply and irrigation

Head(m)	111.38	106.28	99.75	89.85	77.31	59.25	41.81	17.94	8.66
Flow(m³/h)	1	2.01	3	4.02	5.01	6	7	8.01	8.38

Head(m)	111.38	106.28	99.75	89.85	77.31	59.25	41.81	17.94	8.66
Flow(m³/h)	1	2.01	3	4.02	5.01	6	7	8.01	8.38

Head(m)	158.5	151.26	139.12	125.96	110.05	85.57	59.05	28.96	8.25
Flow(m³/h)	1	2.01	3.01	4.02	5	6.01	7	8	8.48

Head(m)	210.42	206.34	194.81	181.45	162.89	141.47	114.54	82.71	37.43	7.85
Flow(m³/h)	0.25	1.01	2.01	3.01	4.04	5.01	6.01	7	8	8.54

Head(m)	300.99	295.18	279.17	261.42	231.23	196.44	151.16	100.05	36.1	7.13
Flow(m³/h)	0.47	1	2.02	3	4.01	5.02	6	7	8.01	8.37

Head(m)	385.96	379.53	359.13	335.16	304.56	264.89	213.89	156.05	8.25
Flow(m³/h)	0.41	1.02	2.02	3.01	4.02	5.01	6	7	8.44

Head(m)	472.56	461.54	434.51	402.48	357.71	312.01	230.92	154.11	35.9	7.64
Flow(m³/h)	0.32	1.07	2.01	3.06	4.05	5.04	6.07	7.06	8.01	8.27

Click Here For More Information

High speed deep well pump | The maximum speed is 6000 rpm | solar water pump for irrigation

Head(m)	49.26	46.81	43.85	39.47	34.88	28.45	20.9	12.03	1.83
Flow(m³/h)	2.01	4.01	6.03	8.03	10.03	12.03	14.03	16.03	17.81

Head(m)	49.26	46.81	43.85	39.47	34.88	28.45	20.9	12.03	1.83
Flow(m³/h)	2.01	4.01	6.03	8.03	10.03	12.03	14.03	16.03	17.81

Head(m)	74.35	70.37	66.19	61.89	53.54	43.14	30.9	17.94	1.32
Flow(m³/h)	2.02	4.01	6	8.02	10.03	12.01	14.09	16.07	17.37

Head(m)	100.56	95.77	89.55	82.1	72.11	58.34	42.53	24.53	0.4
Flow(m³/h)	2.02	4.02	6.03	8.01	10.03	12.03	14.05	16.08	17.66

Head(m)	148.91	142.28	131.67	120.35	104.64	83.84	61.7	30.59	0.2
Flow(m³/h)	2.04	4.01	6	8	10.03	12.03	14.05	16.03	17.63

Head(m)	231.53	219.8	205.52	181.26	160.13	132.08	96.99	50.58	1.32
Flow(m³/h)	2.03	4.03	6.02	8	10.01	12.01	14.03	16.08	17.69

Head(m)	330.88	314.05	294.67	261.46	231.02	182.37	124.13	63.64	0.3
Flow(m³/h)	2.04	4.02	6.01	8.01	10	12.05	14	16.07	17.65

Click Here For More Information

6000 rpm high speed deep well pump | AC DC Stainless steel solar pump | Submersible Well Pump for Irrigation | Water Pump Supplier

Head(m)	41.2	38.96	36.1	33.55	30.18	24.57	17.03	2.44
Flow(m³/h)	3	6.04	9	12.03	15.03	18.03	21.02	26.24

Head(m)	64.35	61.19	57.42	52.93	48.24	41	31.41	19.88	2.64
Flow(m³/h)	3.02	6.01	9.03	12.01	15.04	18.01	21.04	24.03	27.49

Head(m)	106.58	100.46	94.75	86.49	78.23	64.35	50.28	30.18	0.91
Flow(m³/h)	3	6.01	9	12.06	15.07	18.06	21.09	24.08	27.51

Head(m)	145.34	136.77	126.88	117.39	107.5	96.08	80.47	80.47	59.76	3.87
Flow(m³/h)	3	6.01	9.06	12	15.01	18.01	21.07	21.07	24.05	28.44

Head(m)	209.5	196.95	185.63	172.27	158.09	141.06	141.06	114.95	75.98	3.46
Flow(m³/h)	3	6.02	9.04	12.05	15.04	18	18	21.09	24.03	28.18

Click Here For More Information

20m3/h flow high speed deep well pump | 6000RPM Motor | High Flow Irrigation | Solar Water Pump Supplier

Head(m)	49.67	46.3	42.42	35.59	28.86	22.43	13.97	4.89
Flow(m³/h)	4	8.03	12.06	16.06	20.08	24.01	28.05	31.2

Head(m)	75.37	71.6	64.35	58.34	53.24	47.63	36.3	1.01
Flow(m³/h)	4.03	8.01	12	16.01	20.03	24.03	28	31.22

Head(m)	106.99	102.3	93.73	85.47	79.04	69.86	56.19	6.21
Flow(m³/h)	4	8.01	12.03	16.01	20.01	24.01	28.08	31.5

Head(m)	182.78	173.8	158.91	145.95	125.66	106.58	83.84	4.28
Flow(m³/h)	4.01	8	12.01	16.01	20.07	24.1	28.05	31.89

Click Here For More Information

High speed deep well pump | 32m3/h flow | 6000RPM DC Brushless Motor | Agricultural Irrigation | Solar Water Pump Supplier

Head(m)	22.43	21.51	19.98	18.05	16.72	14.88	13.76	12.54	11.52	8.46	5.4	2.34
Flow(m³/h)	4.26	8	12.1	16.01	20.05	24.18	28.09	32.07	36.07	40	44.07	47.34

Head(m)	41.91	39.77	37.73	34.67	31.41	28.86	26.72	24.68	22.02	17.33	10.91	1.2
Flow(m³/h)	4.08	8	12.04	16.05	20.09	24	28.04	32.04	36	40.14	44.09	49.75

Head(m)	70.07	67.82	64.66	61.09	57.11	52.52	50.38	48.85	43.95	38.96	29.88	2.61
Flow(m³/h)	4.06	8.01	12.01	16.03	20.04	24.08	28.01	32	36.05	40.03	44.02	49.46

Head(m)	115.76	113.52	108.32	102.09	95.26	87.81	84.04	81.18	73.53	63.74	54.05	34.57	1.62
Flow(m³/h)	4.06	8.18	12.11	16.12	20.15	24.07	28.11	32	36.16	40.16	44	48.09	50.8

Click Here For More Information
