High Voltage Solar Submersible Pump – Solar Farm And Ranch

High Voltage Solar Submersible Pump

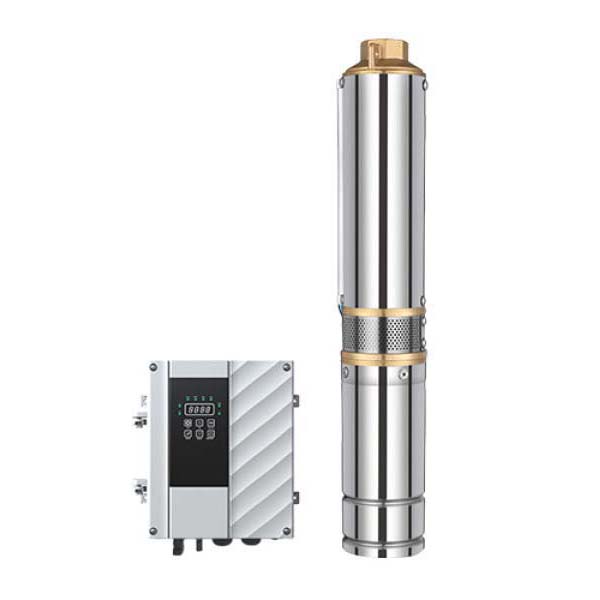

Solar pump factory outlet solar submersible pump with plastic impeller 4inch solar powered pump for irrigation

Head(m)	54.26	50.99	49.36	47.01	45.28	41.91	38.45	33.45	29.78	26.31	21.62	17.74	12.03	6.83
Flow(m³/h)	0.03	0.52	1.01	1.54	2.02	2.52	3.01	3.55	4.1	4.52	4.97	5.53	6.01	6.39

Head(m)	82.82	82	78.23	72.31	67.52	64.25	57.93	50.48	45.38	38.55	31.2	23.55	8.25
Flow(m³/h)	0.53	1.08	1.6	2.02	2.57	3	3.51	4.08	4.5	5.01	5.53	6.03	6.81

Head(m)	103.52	100.46	94.04	88.53	79.65	72.72	67.82	56.6	48.44	37.94	29.27	7.23
Flow(m³/h)	0.55	1.03	1.54	2.01	2.53	3.03	3.5	4.06	4.52	5.06	5.49	6.44

Head(m)	128.72	124.02	116.68	111.58	98.32	88.63	77.72	67.01	54.26	42.93	29.98	6.83
Flow(m³/h)	0.5	1.09	1.53	2.05	2.54	3.07	3.52	4.11	4.5	4.99	5.51	6.29

Head(m)	50.99	50.07	48.03	42.73	33.96	26.82	18.86	10.91	2.03
Flow(m³/h)	1.08	2.04	3.05	4.05	5.08	6	7.05	8.07	9.04

Head(m)	49.46	48.75	47.32	43.44	36.81	30.69	22.33	13.86	1.52
Flow(m³/h)	1.09	2.04	3.09	4.13	5.11	6.1	7	8.03	8.84

Head(m)	62.21	60.89	59.87	54.46	45.99	37.73	24.47	13.05	1.11
Flow(m³/h)	1.05	2.03	3.08	4.1	5.08	6.04	7.17	8.06	9.05

Head(m)	76.49	73.13	70.78	68.13	55.68	42.32	33.14	16.31	2.64
Flow(m³/h)	1.06	2.01	2.92	3.9	5.04	6.2	7.07	8.02	9.3

Head(m)	35.59	33.75	32.33	30.8	29.57	28.35	25.19	22.33	19.58	16.72	13.05	5.6	1.73
Flow(m³/h)	1.01	2.01	3.03	4.04	5.02	6.01	7.05	8.01	9.05	10.03	11.02	12.06	12.67

Head(m)	57.72	55.48	50.18	44.67	40.28	37.73	34.16	29.08	23.15	17.94	12.74	6.01	2.13
Flow(m³/h)	1.13	2.08	3.01	4.12	5.05	6.04	7.04	8.13	9.14	10.13	11.05	12.1	12.67

Head(m)	56.09	51.81	50.07	48.34	41.4	36	27.23	21.11	10.19	2.44
Flow(m³/h)	1.51	3.11	4.09	4.53	6.1	7.45	9.07	10.51	12.04	13.02

Head(m)	45.48	43.14	41.2	34.37	28.25	23.66	17.13	10.09	5.5
Flow(m³/h)	2	4.07	6.13	8.09	10.08	12	13.98	16.26	17.1

Head(m)	164.31	159.72	155.54	149.32	146.67	140.04	98.01	87.2	67.31	49.46	1.62
Flow(m³/h)	1.02	1.52	2.13	2.66	3.06	3.59	4.06	4.52	5.01	5.54	6.81

Head(m)	114.03	111.58	104.64	99.44	87.61	72	51.4	28.86	5.3	0.81
Flow(m³/h)	1.11	2.05	3	4.08	5.01	6.02	7.14	8.07	9.08	9.12

Head(m)	105.87	100.26	92.71	82.82	74.25	68.43	60.58	53.95	43.65	36.61	28.25	17.33	4.07
Flow(m³/h)	1.15	2	3.01	4.04	5.05	6.04	7.14	8	9.15	10.13	11.06	12.08	13.22

Click Here For More Information

4-inch solar water pump solar submersible pump with plastic impeller Solar pump factory solar agricultural water pumping system

Head(m)	81.49	78.74	74.25	69.66	62.52	52.42	42.93	29.67	15.5	4.07
Flow(m³/h)	0.48	1.02	1.52	2.02	2.5	3.05	3.5	4	4.53	4.84

Head(m)	59.56	52.93	47.73	40.59	28.25	17.74	9.58	1.22
Flow(m³/h)	1.01	2.07	3.21	4.01	5.29	6.28	7.04	8.03

Head(m)	89.45	82.2	72.62	56.81	41.51	27.12	8.36	1.11
Flow(m³/h)	1.08	2.05	3.08	4.09	5.3	6.08	7.08	7.49

Head(m)	70.37	60.78	55.58	47.63	41.4	36.81	32.73	28.25	23.15	17.74	12.23	5.81
Flow(m³/h)	1	2.09	3.07	4.05	5.09	6.21	7.04	8.1	9.06	10.11	11.1	12.01

Head(m)	39.67	35.49	32.63	30.69	27.43	23.55	19.98	15.39	10.19	2.24
Flow(m³/h)	1.49	3.06	4.55	6.14	7.5	9.17	10.56	12.13	13.53	14.9

Head(m)	55.58	45.79	39.67	35.18	31.61	27.23	23.55	16.62	11.31	2.64
Flow(m³/h)	1.5	3.04	4.5	6.07	7.55	9	10.5	12.09	13.49	15.47

Head(m)	68.23	62.21	54.87	49.67	45.59	42.02	38.34	35.59	29.06	21.21	8.46	2.95
Flow(m³/h)	1	2.05	3.05	4.07	5.02	6	7.09	8.04	10.11	12.06	14.08	15.13

Head(m)	90.47	81.69	74.25	66.9	60.58	55.89	50.38	43.14	34.98	27.23	19.98	9.58	2.24
Flow(m³/h)	1.15	2.06	3.04	4.02	5.07	6.07	7.07	8.1	9.01	10.11	11.14	12.06	12.79

Head(m)	114.03	103.01	91.69	74.04	57.01	41.1	19.78	1.22
Flow(m³/h)	1.07	2.1	3.02	4.22	5.18	6.02	7.09	7.9

Head(m)	43.55	39.98	36.3	32.22	28.65	24.47	19.78	13.35	9.78	5.3	4.07
Flow(m³/h)	2	4.1	6.06	8.02	9.99	12.01	14.15	16.12	18.03	20.05	20.46

Head(m)	64.35	57.93	50.58	44.87	37.32	30.49	25.08	19.78	14.37	7.23
Flow(m³/h)	2.11	4.08	6.1	8.03	10.08	12.06	14.16	16.08	18.16	20.17

Head(m)	88.32	72.92	61.8	52.73	45.08	32.53	20.39	9.27	3.05
Flow(m³/h)	2.62	4.42	6.23	8.21	10.12	12.26	14.47	16.14	17.14

Click Here For More Information

Solar Water Pumps for Agriculture|Mppt Solar Water Pump Controller|4 inch Solar Water Well Pumps|DC pump Supplier

Head(m)	65.27	57.83	51.71	44.87	39.47	34.47	28.45	24.88	18.45	12.23	6.72
Flow(m³/h)	0.53	1.02	1.51	2.02	2.5	3.02	3.53	4.1	4.51	5.07	5.5

Head(m)	183.39	153.2	126.27	104.03	89.24	76.19	65.17	50.07	35.28	12.54	4.99
Flow(m³/h)	0.58	0.99	1.53	2.02	2.52	3	3.54	4.06	4.51	5.08	5.27

Head(m)	94.24	91.38	80.67	69.35	60.27	52.11	44.87	30.8	20.09	11.52	6.32
Flow(m³/h)	0.5	0.99	1.51	2.02	2.51	3.01	3.55	4.51	5.1	5.58	5.69

Head(m)	133.82	130.35	121.07	103.83	88.53	77.51	65.48	57.01	43.55	32.12	6.21
Flow(m³/h)	0.67	1.07	1.49	2	2.54	2.95	3.51	4.04	4.58	5.06	5.92

Head(m)	77.72	74.66	73.13	71.7	70.68	64.35	58.44	52.42	43.14	33.24	19.78	10.4
Flow(m³/h)	0.6	1.02	1.5	2.02	2.54	3.06	3.43	4.05	5.01	6.02	7.08	7.66

Head(m)	91.28	87	71.49	61.6	48.75	35.08	18.76	9.68
Flow(m³/h)	1.02	2.07	3.09	4.06	5.03	6	7.05	7.54

Head(m)	58.34	55.68	53.75	51.6	48.14	42.83	36.81	30.59	24.06	14.48	2.64
Flow(m³/h)	1.05	2.16	3.04	4.09	5.02	6.03	7.08	8.01	9.09	10.02	11.01

Head(m)	34.37	32.22	30.39	28.86	26	21.11	13.66	5.5	3.36
Flow(m³/h)	2.08	4.01	6.04	8.01	10.11	11.99	14.01	16.01	16.69

Head(m)	25.29	24.78	24.27	23.76	22.13	19.68	16.72	14.17	11.62	8.97	5.81	4.68
Flow(m³/h)	2.09	4.08	6	8	10	12.15	14.13	16.11	18.11	20.03	22.05	23.27

Head(m)	18.25	16.31	14.99	13.05	11.93	9.99	8.46	6.83	4.68	2.03	1.83
Flow(m³/h)	3.12	5.93	8.96	12.01	14.91	18.01	20.94	23.95	27.34	30.66	31.2

Head(m)	20.9	20.6	18.45	16.31	14.78	13.15	11.52	9.58	7.54	5.4	3.26	1.83
Flow(m³/h)	3.52	6.42	9.56	12.37	15.35	18.35	21.26	24.3	27.41	30.08	33.26	35.41

Head(m)	26.61	22.43	17.03	13.15	7.44	1.83
Flow(m³/h)	5.06	10.08	15.18	20.03	25	30.69

Head(m)	231.33	211.64	185.12	157.99	136.06	114.23	98.42	82.51	63.23	35.69	5.6
Flow(m³/h)	0.52	1.11	1.52	2.03	2.51	3.12	3.58	4.04	4.51	5.16	5.65

Head(m)	137.28	130.14	120.05	99.65	79.04	59.05	33.86	10.8
Flow(m³/h)	1	2.04	3.04	4.02	5.1	6.03	7.1	7.76

Head(m)	115.76	110.56	98.52	83.84	73.84	62.93	49.67	38.55	20.29	1.42
Flow(m³/h)	1.08	2	3	4	5.09	6.03	7.03	8.02	9.07	10.07

Head(m)	58.64	56.19	52.93	50.38	46.61	36.41	27.53	15.09	3.15
Flow(m³/h)	2.08	4.16	6.04	8.01	10.1	12.15	13.99	16.04	17.37

ead(m)	37.83	36.41	34.57	32.43	29.16	23.35	17.03	7.23	5.19
Flow(m³/h)	3.17	6.13	9.1	12.11	15.09	18.25	21.07	24.05	24.93

Head(m)	38.65	32.53	28.14	23.76	20.09	16.62	11.82	7.34	6.72
Flow(m³/h)	4.05	8.03	12.05	16.01	20.04	24.09	28	32.58	35.36

Click Here For More Information

Solar submersible pump|Wide Voltage Controller|3 inch S/S impeller solar pump|DC pump Supplier

Head(m)	88.94	87.2	79.96	67.01	52	42.53	37.63	28.25	18.66	5.3
Flow(m³/h)	0.58	1.06	1.56	2.02	2.54	3.11	3.51	4.04	4.51	4.95

Head(m)	99.24	95.57	82.41	68.54	56.09	47.32	40.38	30.9	21	5.5
Flow(m³/h)	0.6	1.02	1.51	2.05	2.55	3.08	3.55	4.02	4.51	5.01

Head(m)	122	119.74	111.17	94.75	79.86	67.41	57.72	48.44	36.2	22.43	6.42
Flow(m³/h)	0.63	1.02	1.54	2.05	2.51	3.04	3.5	4.03	4.53	5	5.39
