4 inch water-cooled HV DC brushless solar water pump with external controller with S/S impeller

Categories	WATER-COOLED SOLAR PUMP WITH EXTERNAL CONTROLLER
Model	4DFSW
Type	water-cooled solar pump with external controller
Material	Stainless steel
Package type	Wooden case
Certificate	CE, GS, RoHS
Application	Household;irrigation,livestock
Update Time	Apr 13,2025

Contact Us

4 inch water-cooled DC brushless solar water pump with external controller

4 inch water-cooled DC brushless solar water pump with external controller direct sales from solar water pumps manufacturers

Water-cooled motor : More environmentally friendly and can be placed in deep water for work without leaking

Max Flow range: 36-130m³/h

Max Head range: 63-310m

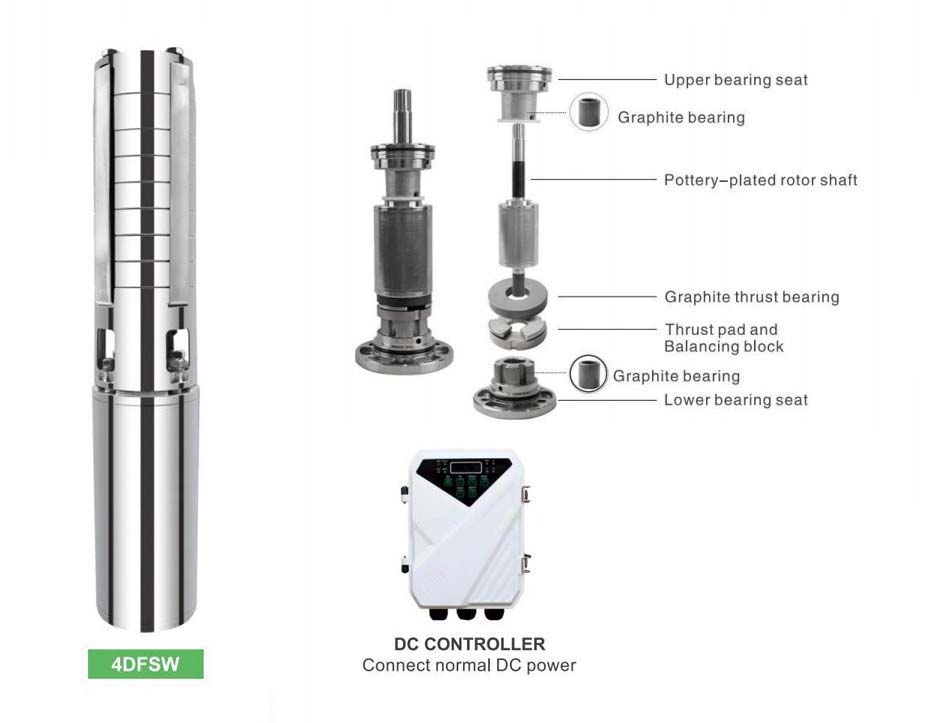

DIFFUL Solar Water Pumps and Controllers

4 inch water-cooled DC brushless solar water pump with external controller

ITEM	Max.flow（m³/h)	Max.head（m）	DC Voltage（V）	Optimum input voltage(DC/V)	Power （kw）	Outlet （inch）	Cable（m）	Solar panel
ITEM	Max.flow（m³/h)	Max.head（m）	DC Voltage（V）	Optimum input voltage(DC/V)	Power （kw）	Outlet （inch）	Cable（m）	Open circuit voltage(VOC)	Power
^{4DFSW5.2-67-72-750}	5.2	67	72V	90V-120V	750	1.25	2	<160V	≥1.3*PUMP POWER
4DFSW5.2-101-72-1100	5.2	101	72V	90V-120V	1100	1.25	2	<160V	≥1.3*PUMP POWER
4DFSW5.2-101-110-1100	5.2	101	110V	110V-150V	1100	1.25	2	<210V	≥1.3*PUMP POWER
4DFSW5.2-146-110-1300	5.2	146	110V	110V-150V	1300	1.25	2	<210V	≥1.3*PUMP POWER
4DFSW4.8-203-110-1500	4.8	203	110V	110V-150V	1500	1.25	2	<210V	≥1.3*PUMP POWER
4DFSW7.5-80-110-1300	7.5	80	110V	110V-150V	1300	1.25	2	<210V	≥1.3*PUMP POWER
4DFSW7.5-100-110-1500	7.5	100	110V	110V-150V	1500	1.25	2	<210V	≥1.3*PUMP POWER
4DFSW11-60-110-1500	11	60	110V	110V-150V	1500	2	2	<210V	≥1.3*PUMP POWER
4DFSW19-35-110-1500	19	35	110V	110V-150V	1500	2	2	<210V	≥1.3*PUMP POWER
4DFSW25-26-110-1500	25	26	110V	110V-150V	1500	2	2	<210V	≥1.3*PUMP POWER

4 inch water-cooled HV DC brushless solar pump with external controller Hydraulic Performance Curves

How to choose a solar pump:

Confirm you technical requiremt

How deep is your well (borehole)?
What is the distance between the tank and the well?
What is the height of the tank?
What is your requirement for the flow rate (L/H)?

Choose solar pumps according to your needs

Calculate the “actual lift needed” and find an appropriate pump.
Then choose the most suitable pump according to different flow rates and prices as well as pump materials.

How to calculate the Head?

How To Choose Solar Panel

The solar PV system voltage needs to meet the voltage range in the figure below. For example: The 4DFPW6-56-110 model matches the solar panel ac voltage between 85V～280V and dc voltage between 100V~350V.
