Submersible Deep Well Pump with 15m³/h Rated Flow
6000RPM High-Speed Deep Well Pump for 15 cubic meters of water per hour (15 m³/h)
For applications that require a higher water volume, the pump with a rated flow rate of 15 m³/h comes into play. This category represents high-speed deep well pumps specifically designed to handle a water volume of 15 cubic meters per hour. Such pumps find utility in larger agricultural operations, commercial buildings, and industries that require a substantial water supply.
Submersible Deep Well Pump with 15m³/h Rated Flow Technical Data
|
ITEM |
Rated flow（m³/h） |
Rated head（m） |
Max.flow（m³/h） |
Max.head（m） |
AC voltage（V） |
OptimumDC voltage（V） |
Open circuit voltage
（VOC）
|
Power
（kw）
|
Outlet
（inch）
|
Outlet
diameter
（mm）
|
Cable（m） |
Pump height（mm） |
Pump
weight
（kg）
|
|
|
4DGS15-31/2-3000-A/D |
15 |
31 |
27 |
46 |
380 |
520-750 |
＜780 |
3 |
2 |
100 |
2 |
608 |
9.5 |
|
|
4DGS15-49/3-4000-A/D |
15 |
49 |
27 |
70 |
380 |
520-750 |
＜780 |
4 |
2 |
100 |
2 |
687 |
11.1 |
|
|
4DGS15-77/5-5500-A/D |
15 |
77 |
27 |
117 |
380 |
520-750 |
＜780 |
5.5 |
2 |
100 |
2 |
820 |
12.9 |
|
|
4DGS15-105/6-7500-A/D
|
15
|
105 |
27 |
145 |
380
|
520-750
|
＜780 |
7.5 |
2 |
100 |
2 |
991 |
17.0 |
|
|
4DGS15-160/20-11000-A/D
|
15
|
160 |
27 |
219 |
380
|
520-750
|
＜780 |
11 |
2 |
100 |
2 |
1217 |
20.7 |
|

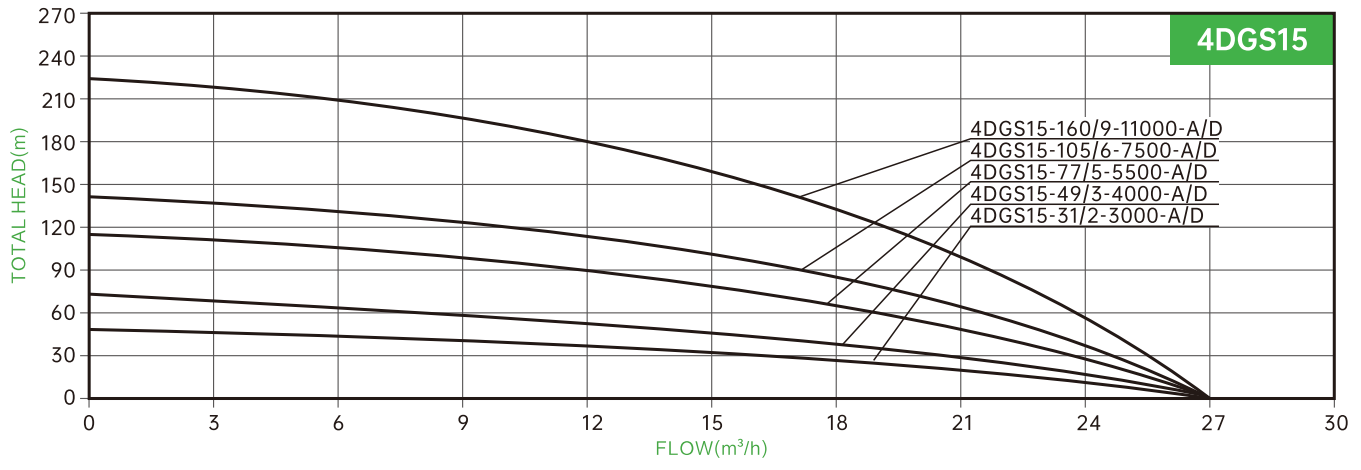

Submersible Deep Well Pump with 15m³/h Rated Flow Hydraulic Performance Curves
How to choose a solar pump:
1. Confirm your technical requirements
How deep is your well (borehole)?
What is the distance between the tank and the well?
What is the height of the tank?
What is your requirement for the flow rate (L/H)?
2. Choose solar pumps according to your needs
Calculate the “actual lift needed” and find an appropriate pump.
Then choose the most suitable pump according to different flow rates and prices as well as pump materials.
How to calculate the Head?
How To Choose Solar Panel
The solar PV system voltage needs to meet the voltage range in the figure below. For example: The 4DGS15-31/2-3000S-A/D model matches the solar panel voltage between 480V～780V.

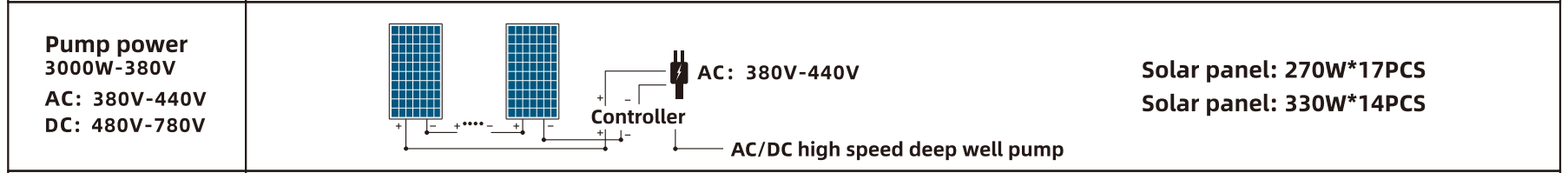

4DGS15-31/2-3000-A/D：

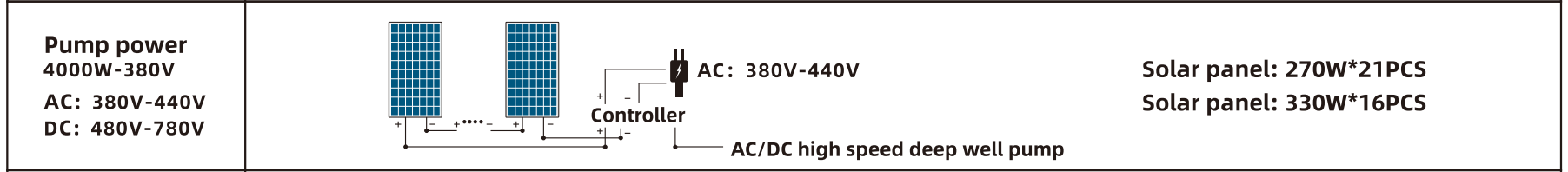

4DGS15-49/3-4000-A/D：

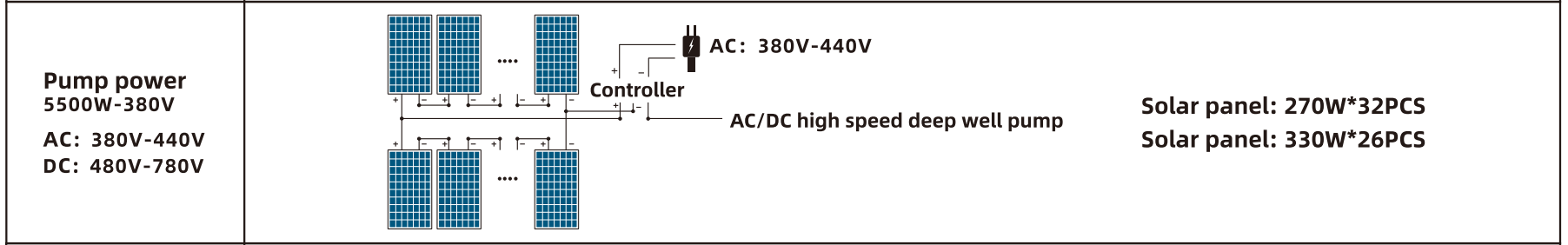

4DGS15-77/5-5500-A/D：
4DGS15-105/6-7500-A/D：

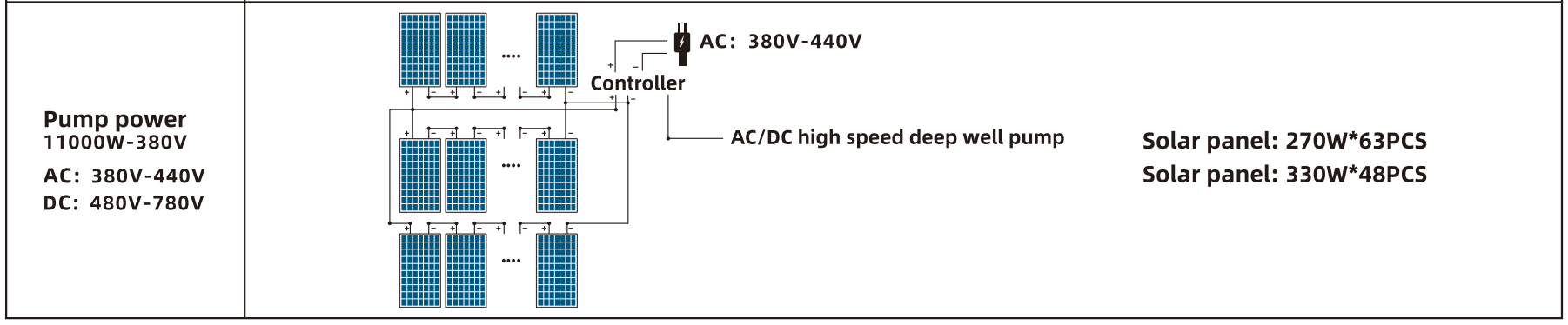

4DGS15-160/9-11000-A/D：
