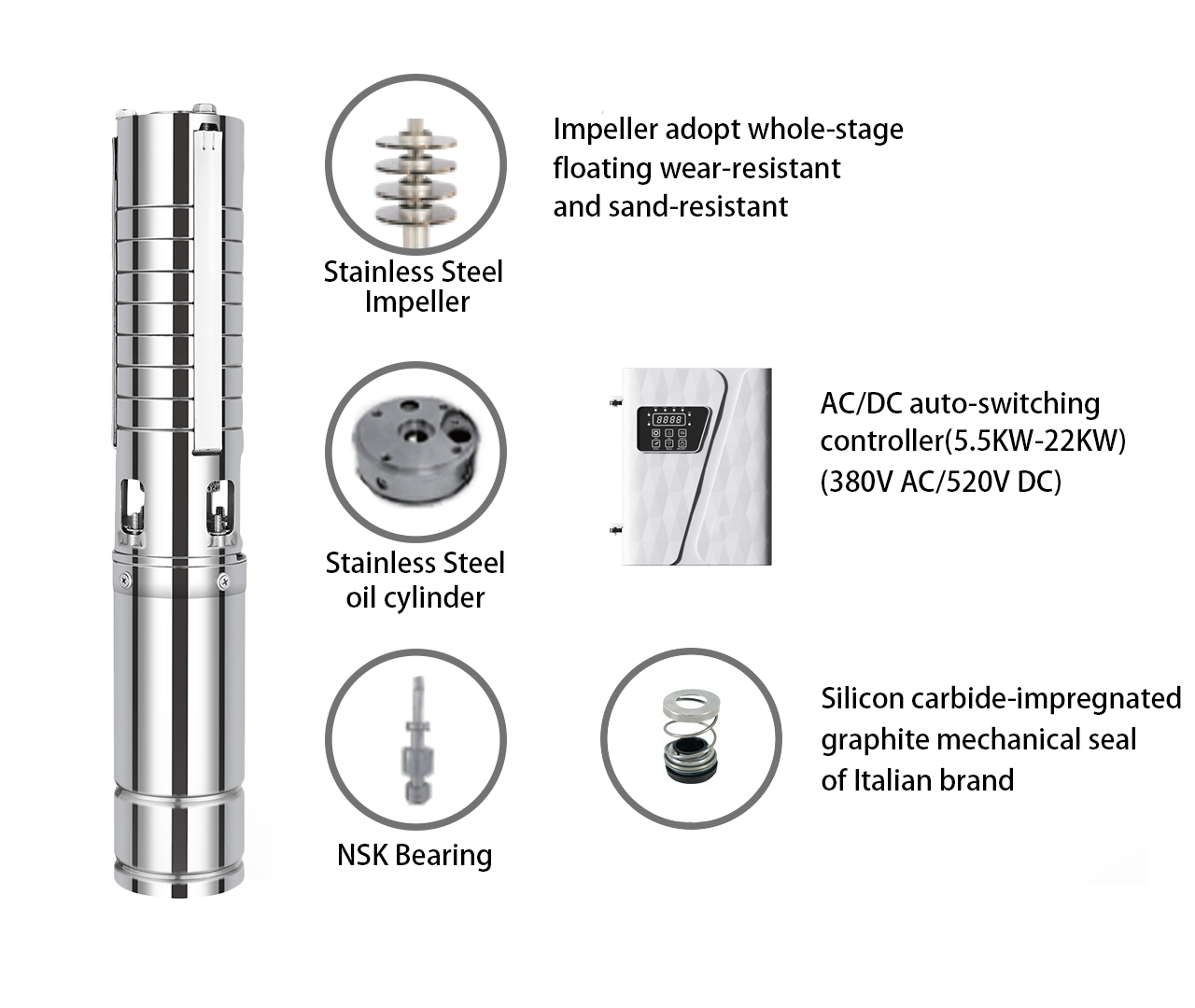

8″AC/DC Brushless Solar Pump with Stainless steel Impeller
8 inch AC/DC brushless submersible solar powered water pump direct sales from solar water pumps manufacturers
Stainless steel impeller: More durability, corrosion resistance, heat resistance, impact resistance and strength
Max Flow range: 1503/h
Max Head range: 37-77m
5.5-22KW AC/DC auto-switching controller: Avaliable for providing household water, livestock husbandry and irrigation
8″AC/DC Brushless Solar Pump with Stainless steel Impeller Technical Data
ITEM | Max.flow（m³/h) | Max.head（m） | AC voltage（V） | OptimumDC voltage（V） | Power （kw） | Outlet （inch） | Cable（m） | Solar panel | ||
Open circuit voltage(VOC) | Power | |||||||||
8DSC150-37-380/520-11000-A/D | 150 | 37 | AC380/DC520 | 520-650 | 18.5 | 5 | 2 | <780V | ≥1.3*PUMP POWER | |
6DSC130-130-380/520-22000-A/D | 150 | 77 | AC380/DC520 | 520-650 | 22 | 5 | 2 | <780V | ≥1.3*PUMP POWER | |
8″AC/DC Brushless Solar Pump with Stainless steel Impeller Hydraulic Performance Curves
How to choose a solar pump:
Confirm you technical requiremt
How deep is your well (borehole)?
What is the distance between the tank and the well?
What is the height of the tank?
What is your requirement for the flow rate (L/H)?
Choose solar pumps according to your needs
Calculate the “actual lift needed” and find an appropriate pump.
Then choose the most suitable pump according to different flow rates and prices as well as pump materials.
How to calculate the Head?
How To Choose Solar Panel
The solar PV system voltage needs to meet the voltage range in the figure below. For example: The 4DGS3-100/5-2200S-A/D model matches the solar panel voltage between 80V～430V.
8DSC150-37-380/520-11000-A/D:
8DSC150-77-380/520-22000-A/D：
