DC peripheral surface solar pump for house using 750W vortex solar pump
SURFACE SOLAR VORTEX PUMP PARAMETE
| SURFACE SOLAR VORTEX PUMP | |||||
| Model | Power | Voltage | Max flow(m3/h) | Max head(m) | Outlet(inch) |
| DQB2.0-25-24-210 | 210 | 24 | 2 | 25 | 1″ |
| DQB2.0-30-24-280 | 280 | 24 | 2 | 30 | 1″ |
| DQB3.0-50-48-550 | 550 | 48 | 3 | 50 | 1″ |
| DQB3.0-65-72-750 | 750 | 72 | 3 | 65 | 1″ |
SURFACE SOLAR VORTEX PUMP PARAMETER
HOW TO CHOOSE A PUMP
Confirm you technical requiremt
How deep is your well(bore hole)?
How far is the distance between tank and well?
What’s you requirement about the flow(L/H)?
Compare your requiremt with out product

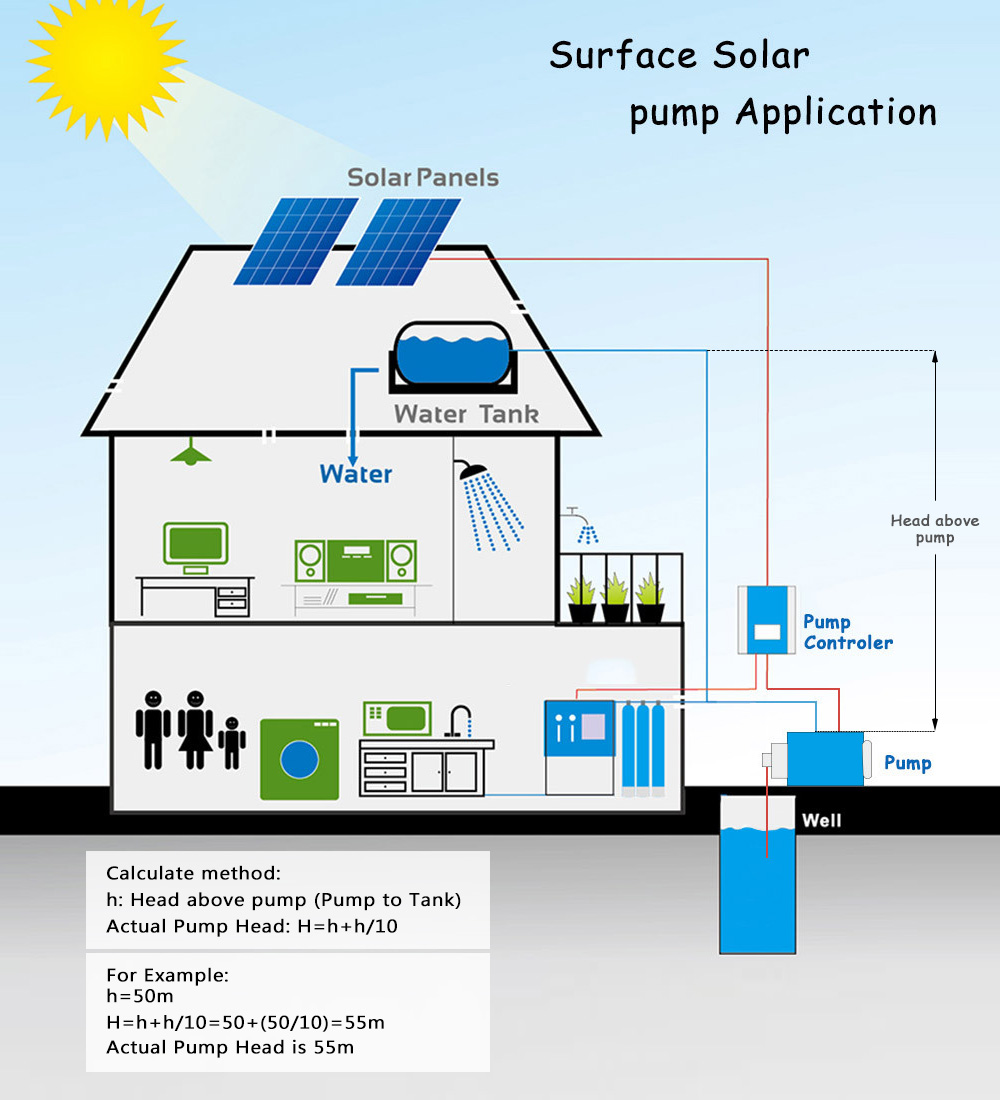

Calculate”Actual Pump Head”and find the proper pump with the right head.
Then you can choose the pump you want according todifferent folw and prices.
HOW TO CHOOSE SOLAR PANEL
The solar PV system voltage needs to meet the voltage range in the figure below. For example: The DQB2.0-25-24-210 model matches the solar panel voltage between 18V～48V.
DQB2.0-25-24-210
DQB2.0-30-24-280
DQB3.0-50-48-550
DQB3.0-65-72-750
