High Speed Deep Well Pump with 8m³/h Rated Flow, Maximum speed 6000RPM
Pump for 8 cubic meters of water per hour (8 m³/h)
In this classification, we have high-speed deep well pumps with a rated flow rate of 8 m³/h. These pumps are capable of delivering 8 cubic meters of water per hour, making them suitable for applications with slightly higher water demands. They are commonly used in larger residential complexes, small to medium-sized farms, and some industrial operations.
High Speed Deep Well Pump with 8m³/h Rated Flow Technical Data
|
ITEM |
Rated flow（m³/h） |
Rated head（m） |
Max.flow（m³/h） |
Max.head（m） |
AC voltage（V） |
OptimumDC voltage（V） |
Open circuit voltage
（VOC）
|
Power
（kw）
|
Outlet
（inch）
|
Outlet
diameter
（mm）
|
Cable（m） |
Pump height（mm） |
Pump
weight
（kg）
|
|
|
4DGS8-40/2-2200S-A/D |
8 |
40 |
17 |
54 |
220 |
300-400 |
＜430 |
2.2 |
2 |
100 |
2 |
532 |
8.3 |
|
|
4DGS8-40/2-2200-A/D |
8 |
40 |
17 |
54 |
380 |
520-750 |
＜780 |
2.2 |
2 |
100 |
2 |
532 |
8.3 |
|
|
4DGS8-62/3-3000-A/D |
8 |
62 |
17 |
82 |
380 |
520-750 |
＜780 |
3 |
2 |
100 |
2 |
585 |
9.4 |
|
|
4DGS8-80/4-4000-A/D |
8 |
80 |
17 |
108 |
380 |
520-750 |
＜780 |
4 |
2 |
100 |
2 |
639 |
10.8 |
|
|
4DGS8-120/6-5500-A/D |
8 |
120 |
17 |
165 |
380 |
520-750 |
＜780 |
5.5 |
2 |
100 |
2 |
720 |
12.2 |
|
|
4DGS8-180/9-7500-A/D
|
8
|
180 |
17 |
256 |
380
|
520-750
|
＜780 |
7.5 |
2 |
100 |
2 |
935 |
16.8 |
|
|
4DGS3-260/13-11000-A/D
|
8
|
260 |
17 |
354 |
380
|
520-750
|
＜780 |
11 |
2 |
100 |
2 |
1119 |
20.3 |
|

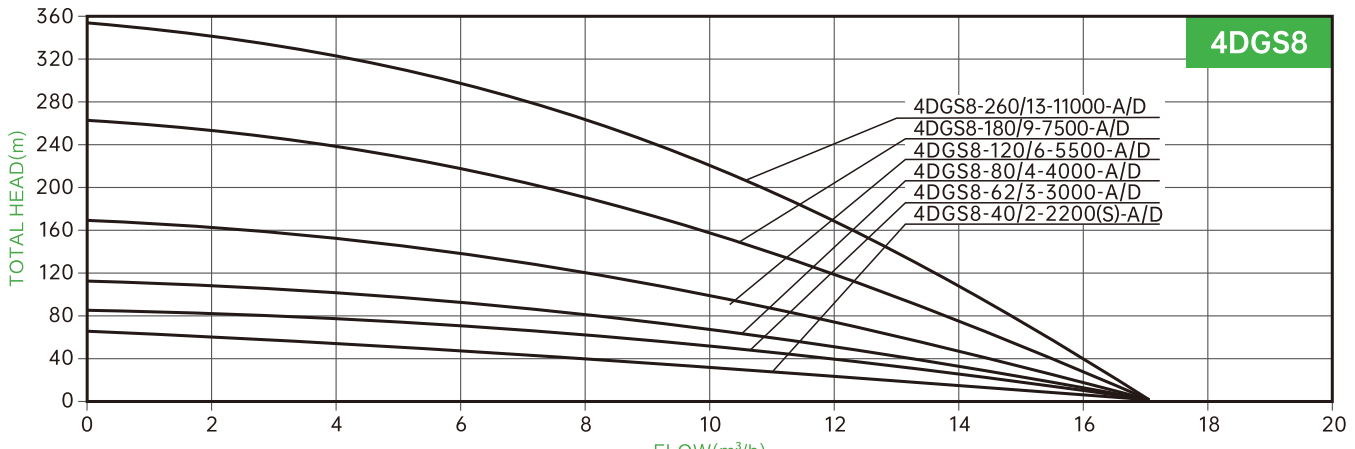

High Speed Deep Well Pump with 8m³/h Rated Flow Hydraulic Performance Curves
How to choose a solar pump:
1. Confirm your technical requirements
How deep is your well (borehole)?
What is the distance between the tank and the well?
What is the height of the tank?
What is your requirement for the flow rate (L/H)?
2. Choose solar pumps according to your needs
Calculate the “actual lift needed” and find an appropriate pump.
Then choose the most suitable pump according to different flow rates and prices as well as pump materials.

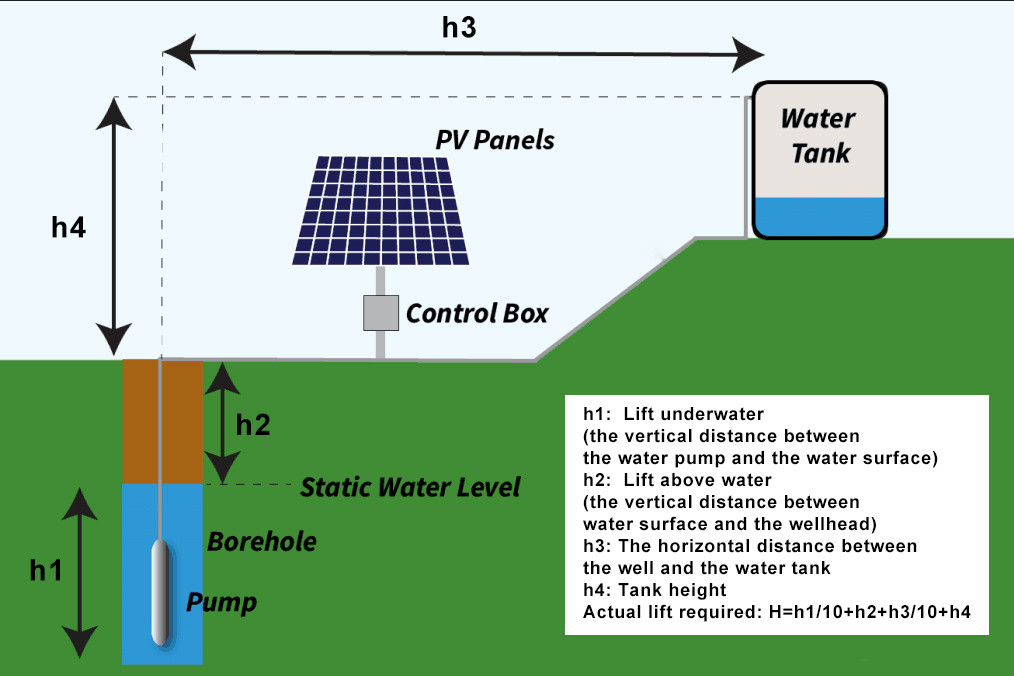

How to calculate the Head?
How To Choose Solar Panel
The solar PV system voltage needs to meet the voltage range in the figure below. For example: The 4DGS8-40/2-2200S-A/D model matches the solar panel voltage between 80V～430V.

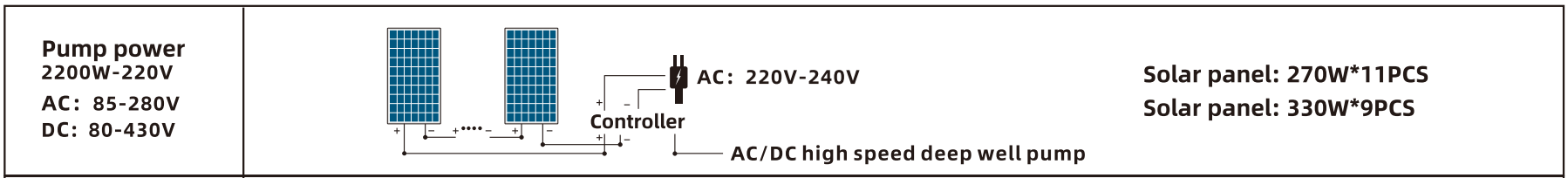

4DGS8-40/2-2200S-A/D：

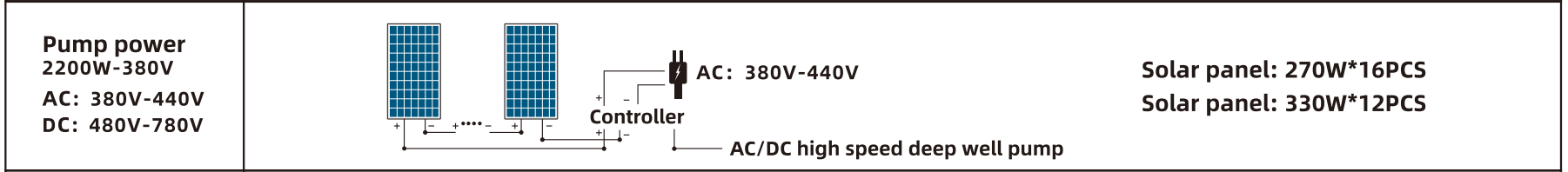

4DGS8-40/2-2200-A/D：

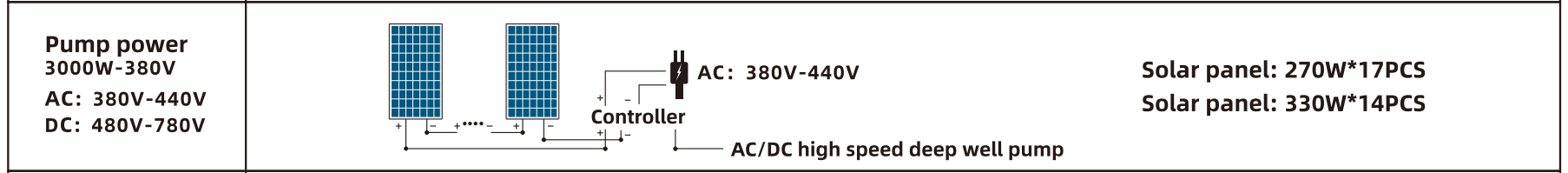

4DGS8-62/3-3000-A/D：

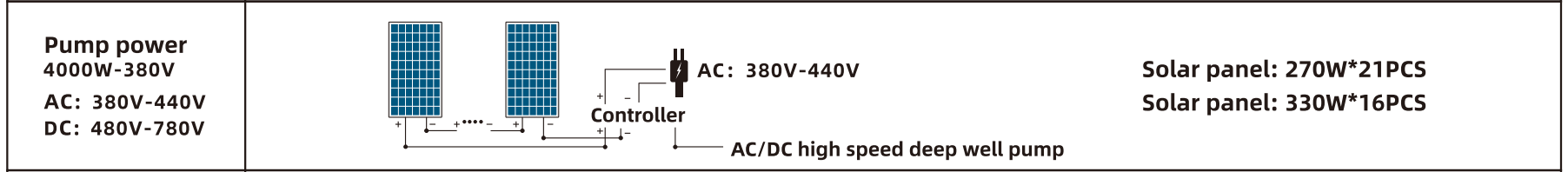

4DGS8-80/4-4000-A/D：

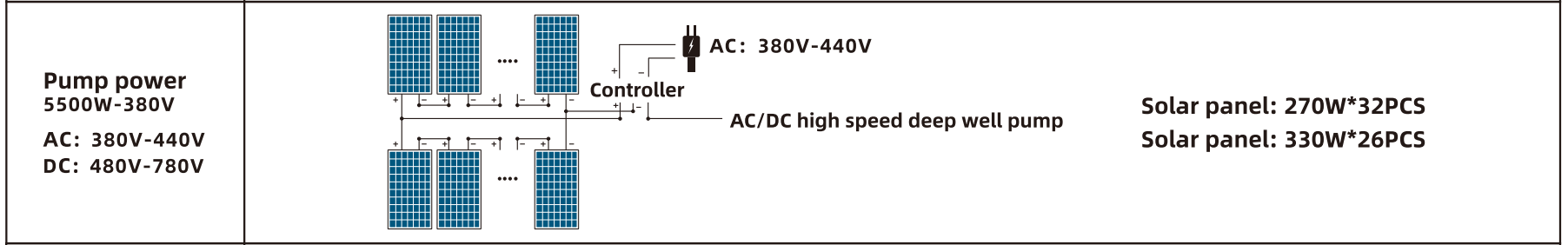

4DGS8-120/6-5500-A/D：
4DGS8-180/9-7500-A/D：

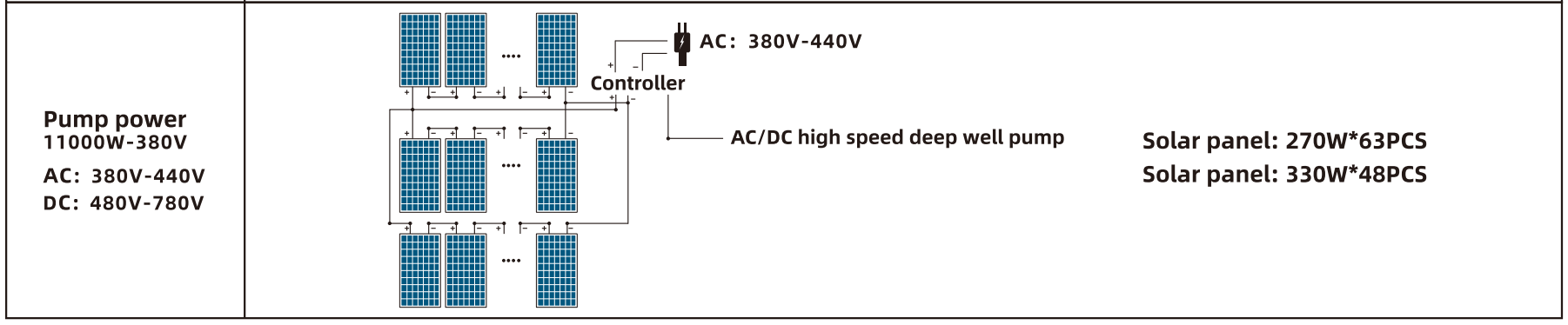

4DGS8-260/13-11000-A/D：
