Hjet dc voltage brushless centrifugal solar pump/4500rpm solar surface pump

Categories	AC/DC SOLAR SURFACE PUMP
Model	HJET
Type	surface solar centrifugal pump
Material	cast iron/brass
Application	domestic water supply,irrigation
Voltage	48V-72V
Package type	wooden case
Standard or nonstandard	Standard
Certificate	CE, RoHS
Update Time	Feb 5,2026

Contact Us

4500 RPM DIFFUL&WELLUP WATER PUMP

Featuring a 4500 RPM permanent magnet synchronous motor,perfectly matched with the output characteristics of solar panels,this series delivers higher head and greater flow.
Whether for agricultural irrigation,livestock water supply,landscape projects,or domestic water use,our products provide anefficient,reliable,and economical green water solution.

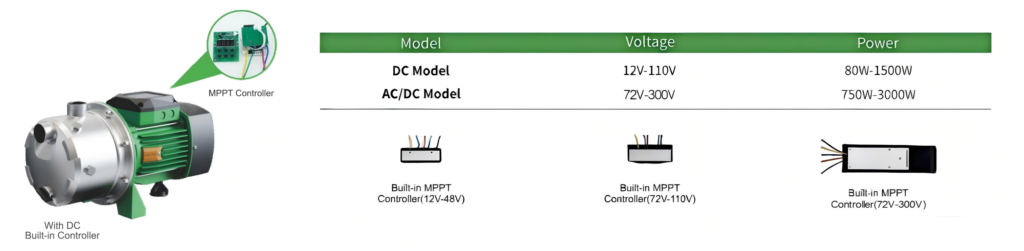

4500RPM SOLAR PUMPWITH BUILT-IN CONTROLLER

A system where the solar-specific controller is integrated within the pump,eliminating the need foradditional purchase and installation of a separate controller.It is simple,convenient,andsignificantly reduces installation difficulty and the probability of errors.

Integrated Design Smart Water Solution

1.All-in-One Design, Easy Installation.

2.Permanent magnet brushless synchronous motor,long working life and high working efficiency.

3.Silicon carbide-impregnated graphite mechanical seal, long service life and reliable operation.

4.180°C high temperature resistant copper wire, insulation class F.

5.Cold rolled 600 silicon steel sheet stator and rotor.

6.MPPT function, the solar power utilization rate is higher.

7.Automatically adjust the speed for operation according to the sunlight power.

8.Over-voltage/undervoltage/over-current/phase loss/short circuit/high temperature protection etc.

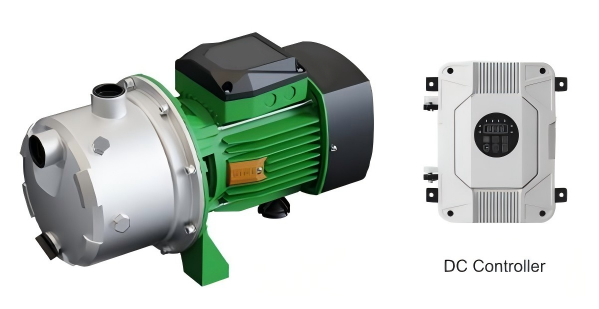

DC BRUSHLESS CENTRIFUGAL SOLAR PUMP

-MPPT controller, brushless motor.

– Features: Cost-effective,simple structure and high reliability.

– Hot-selling market: Southeast Asia, Middle East, South America, Africa,etc.

TECHNICAL DATA

ITEM	BUILT-IN CONTROLLER MODEL	VOLTAGE	OPTIMUM INPUT VOLTAGE(DC)	POWER	MAX.FLOW	MAX.HEAD	OUTLET	CABLE	OPEN CIRCUIT VOLTAGE(VOC)	VOC(-IN MODED)
HJET2.5-35-48-370	-IN	48V	60V-90V	370W	2.5m³/h	35m	1×1″	2m	<120V	<105V
HJET2.7-45-48-550		48V	60V-90V	550W	2.7m³/h	45m	1×1″	2m	<120V	<105V
HJET3-55-72-750		72V	90V-120V	750W	3m³/h	55m	1×1″	2m	<170V	<155V

Hydraulic Performance Curve

How to choose a solar pump?

1.Confirm your technical requirements
How deep is your well(bore hole)?
How far is the distance between tank and well?
What’s you requirement about the flow(L/H)?
2.Compare your requirement with our product
Calculate the “actual lift needed” and find an appropriate pump.
Then you can choose the most suitable pump according to different flow rates and prices as well as pump material.
