Hjsn dc brushless centrifugal solar pump/4500rpm solar surface pump/solar powered dc water pump
4500 RPM DIFFUL&WELLUP WATER PUMP
Featuring a 4500 RPM permanent magnet synchronous motor,perfectly matched with the output characteristics of solar panels,this series delivers higher head and greater flow.
Whether for agricultural irrigation,livestock water supply,landscape projects,or domestic water use,our products provide anefficient,reliable,and economical green water solution.

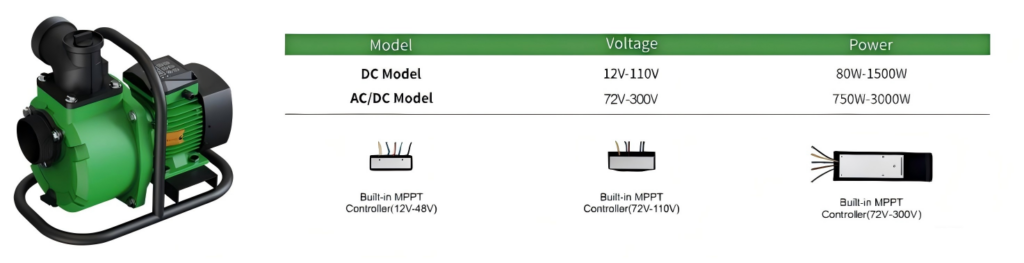

4500RPM SOLAR PUMPWITH BUILT-IN CONTROLLER
A system where the solar-specific controller is integrated within the pump,eliminating the need foradditional purchase and installation of a separate controller.It is simple,convenient,andsignificantly reduces installation difficulty and the probability of errors.

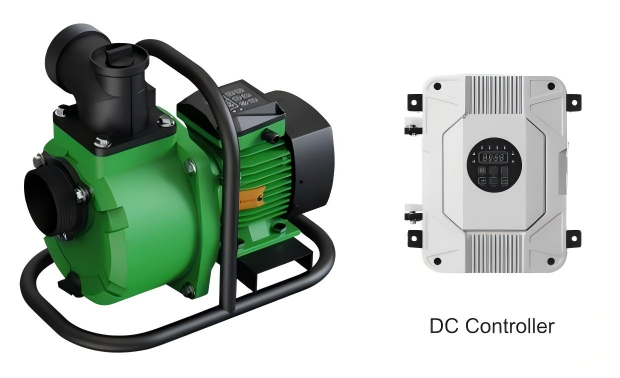

DC BRUSHLESS CENTRIFUGAL SOLAR PUMP
-MPPT controller, brushless motor,aims for farm livestock Off-grid household water supply irrigation.
TECHNICAL DATA
|
ITEM
|
BUILT-IN CONTROLLER MODEL
|
VOLTAGE
|
OPTIMUM INPUT VOLTAGE(DC)
|
POWER
|
MAX.FLOW
|
MAX.HEAD
|
OUTLET
|
CABLE
|
OPEN CIRCUIT VOLTAGE(VOC)
|
VOC(-IN MODED)
|
|
HJSN16-9-24-400
|
-IN
|
24V
|
30V-48V
|
400w
|
16m³/h
|
9m
|
2″
|
0.6m
|
<60V
|
<60V
|
|
HJSN21-15-48-750
|
48V
|
60V-90V
|
750W
|
21m³/h
|
15m
|
2″
|
0.6m
|
<120V
|
<105V
|
|
|
HJSN21-15-72-750
|
72V
|
90V-120V
|
750W
|
21m³/h
|
15m
|
2″
|
0.6m
|
<170V
|
<155V
|
|
|
HJSN25-18-72-1100
|
72V
|
90V-120V
|
1100w
|
25m³/h
|
18m
|
2″
|
0.6m
|
<170V
|
<155V
|
|
|
HJSN25-18-110-1100
|
110V
|
110V-150V
|
1100w
|
25m³/h
|
18m
|
2″
|
0.6m
|
<220V
|
<205V
|
|
|
HJSN27-24-110-1500
|
110V
|
110V-150V
|
1500w
|
27m³/h
|
24m
|
2″
|
0.6m
|
<220V
|
<205V
|
|
|
HJSN28-12-72-750
|
72V
|
90V-120V
|
750W
|
28m³/h
|
12m
|
3″
|
0.6m
|
<170V
|
<155V
|
|
|
HJSN32-15-72-1100
|
72V
|
90V-120V
|
1100w
|
32m³/h
|
15m
|
3″
|
0.6m
|
<170V
|
<155V
|
|
|
HJSN32-15-110-1100
|
110V
|
110V-150V
|
1100w
|
32m³/h
|
15m
|
3″
|
0.6m
|
<220V
|
<205V
|
|
|
HJSN36-20-110-1500
|
110V
|
110V-150V
|
1500w
|
36m³/h
|
20m
|
3″
|
0.6m
|
<220V
|
<205V
|
Hydraulic Performance Curve
How to choose a solar pump?
1.Confirm your technical requirements
How deep is your well(bore hole)?
How far is the distance between tank and well?
What’s you requirement about the flow(L/H)?
2.Compare your requirement with our product
Calculate the “actual lift needed” and find an appropriate pump.
Then you can choose the most suitable pump according to different flow rates and prices as well as pump material.
How to calculate the head?
DC VOLTAGE BRUSHLESS CENTRIFUGAL SOLAR PUMP
How to Choose Solar Panel?
HJSN16-9-24-400
HJSN16-9-24-400-IN
HJSN21-15-48-750
HJSN21-15-48-750-IN
HJSN21-15-72-750
HJSN21-15-72-750-IN
HJSN25-18-72-1100
HJSN25-18-72-1100-IN
HJSN25-18-110-1100
HJSN25-18-110-1100-IN
HJSN27-24-110-1500
HJSN27-24-110-1500-IN
HJSN28-12-72-750
HJSN28-12-72-750-IN
HJSN32-15-72-1100
HJSN32-15-72-1100-IN
HJSN32-15-110-1100
HJSN32-15-110-1100-IN
HJSN36-20-110-1500
HJSN36-20-110-1500-IN
