Categories	HIGH VOLTAGE SOLAR SUBMERSIBLE PUMP
Model	4DPC-HV
Type	solar water pump with plastic impeller
Pump Body Material	Stainless steel
Outlet Material	Brass
impeller Material	Plastic
Package type	wooden case
Certificate	CE, GS, RoHS
Update Time	Apr 8,2025

Contact Us

4 Inch Wide Voltage Stainless Steel Impeller Solar Deep Well Pump

Wide Voltage HV controller：

– Waterproof grade: IP65

– Ambient temperature: -15℃~60℃

– SMPPT Voltage Range(V):

DF-110-HV: 110-400

DF-150-HV: 150-400

DF-200-HV: 200-400

DF-300-HV: 300-400

Solar Submersible Pump

– Stainless steel impeller

– Stainless Steel Outlet/Connection/Oil Cylinder

– The wide voltage controller has a large open circuit voltage range, more flexible solar panel configuration, and can reduce the cost of solar panel connection.

– The stainless steel impeller has better wear resistance and the water pump has a longer service life.

4 Inch Wide Voltage Stainless Steel Impeller Solar Deep Well Pump Technical Data

ITEM	Voltage	Power	Max.flow	Max.head	Outlet	Cable	Solar panel
							Open circuit voltage(VOC)	Power
^{4DSC5.2-67-110-750-HV}	^80V-430V	^750W	^5.2M3/h	^67m	^1.25″	^2m	^{< 430V}	^{1.3*Pump Power}
4DSC4.8-203-200-1500-HV	80V-430V	1500W	4.8M3/h	203m	1.25″	2m	< 430V	1.3*Pump Power
^{4DSC5.2-101-150-1100-HV}	^80V-430V	^1100W	5.2M3/h	^101m	^1.25″	^2m	^{< 430V}	^{1.3*Pump Power}
4DSC5.2-146-200-1300-HV	80V-430V	1300W	5.2M3/h	146m	1.25″	2m	< 430V	1.3*Pump Power
4DSC7.5-80-150-1300-HV	80V-430V	1300W	7.5M3/h	80m	1.25″	2m	< 430V	1.3*Pump Power
4DSC7.5-100-200-1500-HV	^80V-430V	^1500W	^7.5M3/h	^100m	^1.25″	^2m	^{< 430V}	^{1.3*Pump Power}
4DSC11-60-200-1500-HV	80V-430V	1500W	11M3/h	60m	2″	2m	< 430V	1.3*Pump Power
4DSC19-35-200-1500-HV	80V-430V	1500W	19M3/h	35m	2″	2m	< 430V	1.3*Pump Power
4DSC25-26-200-1500-HV	80V-430V	1500W	25M3/h	26m	2″	2m	< 430V	1.3*Pump Power
4/6DSC30-19-150-1100-HV	80V-430V	1100W	30M3/h	19m	3″	2m	< 430V	1.3*Pump Power
4/6DSC36-22-200-1500-HV	80V-430V	1500W	36M3/h	22m	3″	2m	< 430V	1.3*Pump Power
4/6DSC30-31-200-1500-HV	80V-430V	1500W	30M3/h	31m	3″	2m	< 430V	1.3*Pump Power
4DSC5.2-255-300-2200-HV	80V-430V	2200W	5.2M3/h	255m	1.25″	2m	< 430V	1.3*Pump Power
4DSC7.5-150-300-2200-HV	80V-430V	2200W	7.5M3/h	150m	1.25″	2m	< 430V	1.3*Pump Power
4DSC11-120-300-2200-HV	80V-430V	2200W	11M3/h	120m	2″	2m	< 430V	1.3*Pump Power
4DSC19-60-300-2200-HV	80V-430V	2200W	19M3/h	60m	2″	2m	< 430V	1.3*Pump Power
4DSC30-36-300-2200-HV	80V-430V	2200W	30M3/h	36m	2″	2m	< 430V	1.3*Pump Power
4/6DSC36-38-300-2200-HV	80V-430V	2200W	36M3/h	38m	3″	2m	< 430V	1.3*Pump Power

4 Inch Wide Voltage Stainless Steel Impeller Solar Deep Well Pump Hydraulic Performance Curves

HOW TO CHOOSE A PUMP

Confirm you technical requiremt

How deep is your well (borehole)?
What is the distance between the tank and the well?
What is the height of the tank?
What is your requirement for the flow rate (L/H)?

Compare your requiremt with out product

Calculate the “actual lift needed” and find an appropriate pump.
Then choose the most suitable pump according to different flow rates and prices as well as pump materials.

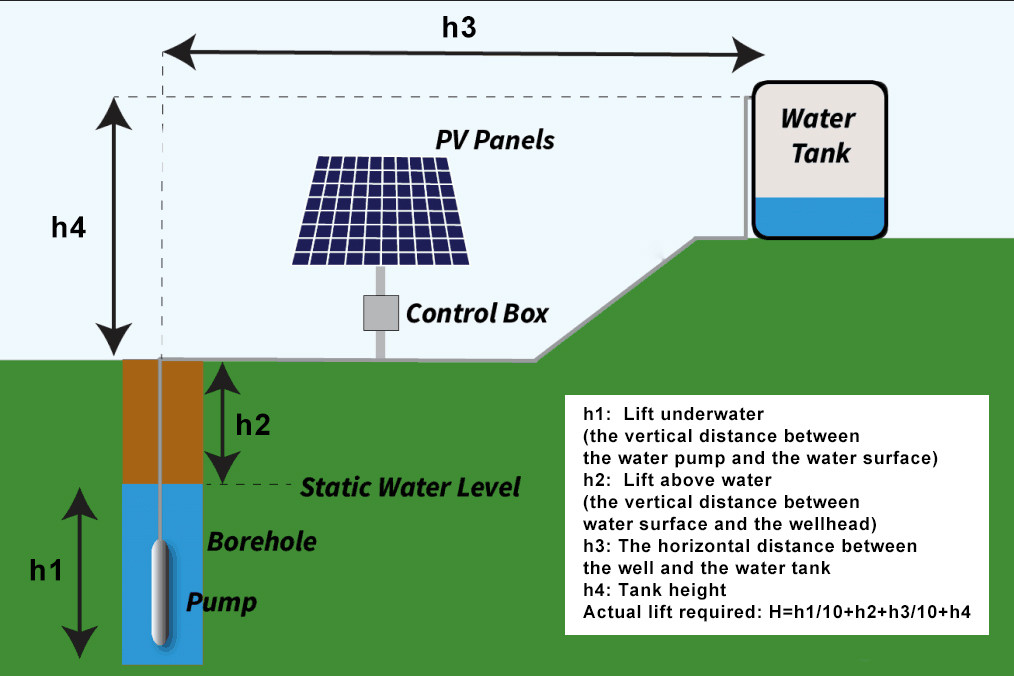

How to calculate the Head?

How To Choose Solar Panel

The solar PV system voltage needs to meet the voltage range in the figure below. For example: The 3DSC4.8-95-110-750-HV model matches the solar panel voltage between 80V～430V.

4DSC5.2-67-110-750-HV：

4DSC4.8-203-200-1500-HV：

4DSC5.2-101-150-1100-HV：

4DSC5.2-146-200-1300-HV：

4DSC7.5-80-150-1300-HV：

4DSC7.5-100-200-1500-HV：

4DSC11-60-200-1500-HV：

4DSC19-35-200-1500-HV：

4DSC25-26-200-1500-HV：

4/6DSC30-19-150-1100-HV：

4/6DSC36-22-200-1500-HV：

4/6DSC30-31-200-1500-HV：

4DSC5.2-255-300-2200-HV：

4DSC7.5-150-300-2200-HV：

4DSC11-120-300-2200-HV：

4DSC19-60-300-2200-HV：

4DSC30-36-300-2200-HV：

4/6DSC36-38-300-2200-HV：
